Cable Ducts (B Type)
Cable Ducts (B Type)
SFX B Type cable Ducts(Channels) are made from rigid PVC, designed for durability and precision in wiring management. They offer high strength, easy installation, and excellent resistance to cracking, oil, fungus, and harsh conditions—ideal for reliable electrical applications.
Key Features
Durable & Tough : Non-brittle, warp-proof, and non-flammable,
ensuring long service life.

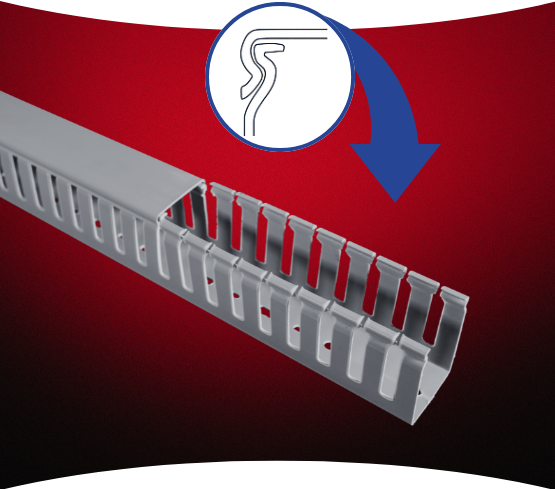

Smart Design : Specially designed duct and cover allow fast and
efficient locking.
Secure Fit : Slotted patterns prevent wires from popping out
when removing the cover.
Flexible Mounting : Elongated slots on the bottom allow for
easy, flexible installation.
Custom Options : Available in various colors, lengths, and
specifications to match customer requirements.
Ordering Information
Available Sizes : B Type (16 sizes, ranging from 15x15mm to 100x100mm).
Standard Length : 1 meter / 2 meters per piece. | Standard Color: Grey
Customization : Special sizes, colors, and slot designs are available upon request.
Applications
Delivers reliable electrical insulation for superior safety.
Maintains clean, organized, and professional wiring layouts.
Enables quick identification and resolution of faults.
Prevents cable congestion, enhancing efficiency and overall system order.
Ordering Information
Available Sizes : B Type (16 sizes, ranging from 15x15mm to 100x100mm).
Standard Length : 1 meter / 2 meters per piece. | Standard Color: Grey
Customization : Special sizes, colors, and slot designs are available upon request.
Applications
Delivers reliable electrical insulation for superior safety.
Maintains clean, organized, and professional wiring layouts.
Enables quick identification and resolution of faults.
Prevents cable congestion, enhancing efficiency and overall system order.
| Sr. No. | Size Width × Height (In MM) |
For 1 Meter | For 2 Meter | ||
|---|---|---|---|---|---|
| Product Code | Standard Packing (In Nos) |
Product Code | Standard Packing (In Nos) |
||
| 1 | 25 × 25 | B12525 | 100 | B22525 | 70 |
| 2 | 25 × 30 | B12530 | 100 | B22530 | 70 |
| 3 | 25 × 40 | B12540 | 100 | B22540 | 60 |
| 4 | 40 × 40 | B14040 | 100 | B24040 | 60 |
| 5 | 25 × 45 | B12545 | 100 | B22545 | 70 |
| 6 | 45 × 45 | B14545 | 80 | B24545 | 60 |
| 7 | 60 × 45 | B16045 | 70 | B26045 | 40 |
| 8 | 25 × 60 | B12560 | 100 | B22560 | 60 |
| 9 | 40 × 60 | B14060 | 80 | B24060 | 50 |
| 10 | 45 × 60 | B14560 | 70 | B24560 | 50 |
| 11 | 60 × 60 | B16060 | 50 | B26060 | 40 |
| 12 | 80 × 60 | B18060 | 40 | B28060 | 30 |
| 13 | 25 × 80 | B12580 | 80 | B22580 | 50 |
| 14 | 45 × 80 | B14580 | 50 | B24580 | 30 |
| 15 | 60 × 80 | B16080 | 40 | B26080 | 30 |
| 16 | 80 × 80 | B18080 | 35 | B28080 | 30 |
| 17 | 100 × 80 | B110080 | 30 | B210080 | 20 |
| 18 | 25 × 100 | B125100 | 80 | B225100 | 50 |
| 19 | 40 × 100 | B140100 | 50 | B240100 | 30 |
| 20 | 60 × 100 | B160100 | 40 | B260100 | 24 |
| 21 | 80 × 100 | B180100 | 30 | B280100 | 20 |
| 22 | 110 × 100 | B1100100 | 30 | B2100100 | 20 |
| 23 | 150 × 100 | B1150100 | 10 | B2150100 | 10 |
| Specifications - POLYVINYL CHLORIDE (PVC) Physical Properties Measured at 23°C |
||
|---|---|---|
| Specific Gravity | 1.4 | |
| Compressive Strength | 540 kg/cm² | |
| Tensile Strength | 390 kg/cm² | |
| Flexural Strength | 727 kg/cm² | |
| Impact Resistance | 3.6 cm kg/cm² | |
| Working Temperature | 65°C and below | |
| Specific Heat | 0.22 Cal/°C/gm | |
| Thermal Conductivity | 4.0 cal/(sec·cm²·°C) ×10⁴ | |
| Thermal Expansion | 0.063 mm/m°C | |
| Water Absorption | 0.10% in 24 hrs. | |
| Hardness | 70 Duro D | |
| Dielectric Constant | 1.7 (60 cps at 30°C) | |
| Power Factor | 2.52 (60 cps at 30°C) | |
| Dielectric Strength | 30 KV/mm | |
| Burning Rate | Self Extinguishing | |
| Modulus Elasticity in tension | 19,800 kg/cm² | |
-
+
