Cable Ducts (C Type)
UL Certified Details
File No: E550258
• Plastics - Component
View UL Listing
View UL Listing
Cable Ducts (C Type)

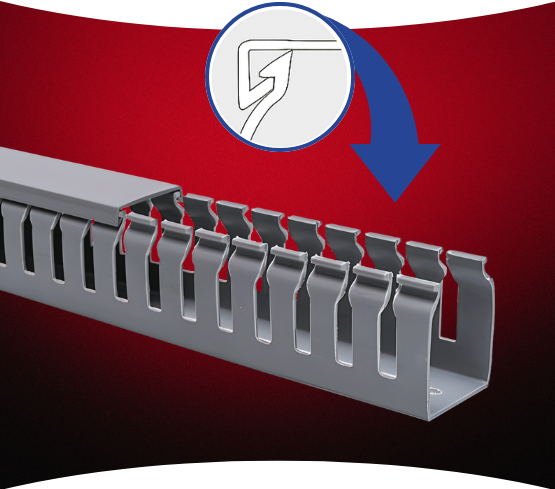

SFX C Type Cable Ducts(Channels) are crafted from premium rigid PVC, built for strength and reliability in wiring management. They ensure smooth installation, long-lasting durability, and superior resistance to cracking, oil, fungus, and tough environments—perfect for safe and efficient electrical applications.
Key Features
Premium Quality Material : Made from specially formulated, UL Certified (E550259), lead-free RoHS PVC with FRLS properties, compliant with UL94, UL746A, and UL796B standards.
Durable & Long-Lasting : Highly resistant to peeling, cracking, chipping, oil, fungus, and salt solutions for superior performance.
Safe & Corrosion-Free : Non-flammable, non-corrosive, and rustproof construction ensures maximum safety and reliability.
Innovative Design : Side slots prevent wire displacement during cover removal, while elongated bottom slots allow smooth and quick installation.
Custom Options : Available in various colors, lengths, and
specifications to match customer requirements.
UL Certified Details
File No: E550258 — Plastics - Component
[View Listing ]
File No: E550259
• Positioning Devices — [View Listing ]
• Positioning Devices (Canada) — [View Listing ]
Ordering Information
Available Sizes : C Type (24 sizes, ranging from 25x25mm to 150×100).
Standard Color : Grey, other Colour: Blue, Black, White available on request.
Standard Length : 1 meter / 2 meters per piece.
Slotting Type: : Available in Thin Slots (TS), Standard Slots(SS) & Unslotted Slots (US).
Applications
Delivers reliable electrical insulation for superior safety.
Maintains clean, organized, and professional wiring layouts.
Enables quick identification and resolution of faults.
Prevents cable congestion, enhancing efficiency and overall system order.
| Sr. No. | Size Width × Height (in mm) | For 1 Meter | For 2 Meter | ||
|---|---|---|---|---|---|
| Product Code | Standard Packing (In Nos) | Product Code | Standard Packing (In Nos) | ||
| 1 | 25 × 25 | C2525NGL1 | 100 | C2525NGL2 | 70 |
| 2 | 25 × 30 | C2530NGL1 | 100 | C2530NGL2 | 70 |
| 3 | 25 × 40 | C2540NGL1 | 100 | C2540NGL2 | 50 |
| 4 | 40 × 40 | C4040NGL1 | 100 | C4040NGL2 | 60 |
| 5 | 25 × 45 | C2545NGL1 | 100 | C2545NGL2 | 70 |
| 6 | 45 × 45 | C4545NGL1 | 80 | C4545NGL2 | 60 |
| 7 | 60 × 45 | C6045NGL1 | 70 | C6045NGL2 | 40 |
| 8 | 25 × 60 | C2560NGL1 | 100 | C2560NGL2 | 60 |
| 9 | 40 × 60 | C4060NGL1 | 80 | C4060NGL2 | 50 |
| 10 | 45 × 60 | C4560NGL1 | 70 | C4560NGL2 | 40 |
| 11 | 60 × 60 | C6060NGL1 | 50 | C6060NGL2 | 40 |
| 12 | 80 × 60 | C8060NGL1 | 40 | C8060NGL2 | 30 |
| 13 | 25 × 80 | C2580NGL1 | 80 | C2580NGL2 | 50 |
| 14 | 40 × 80 | C4080NGL1 | 50 | C4080NGL2 | 50 |
| 15 | 60 × 80 | C6080NGL1 | 40 | C6080NGL2 | 30 |
| 16 | 80 × 80 | C8080NGL1 | 35 | C8080NGL2 | 30 |
| 17 | 100 × 80 | C10080NGL1 | 30 | C10080NGL2 | 20 |
| 18 | 25 × 100 | C25100NGL1 | 50 | C25100NGL2 | 50 |
| 19 | 40 × 100 | C40100NGL1 | 50 | C40100NGL2 | 36 |
| 20 | 60 × 100 | C60100NGL1 | 40 | C60100NGL2 | 24 |
| 21 | 80 × 100 | C80100NGL1 | 30 | C80100NGL2 | 20 |
| 22 | 100 × 100 | C100100NGL1 | 20 | C100100NGL2 | 16 |
| 23 | 150 × 100 | C150100NGL1 | 10 | C150100NGL2 | 10 |
New Development : FRLS Grade Channels in all Sizes
| Specifications - POLYVINYL CHLORIDE (PVC) Physical Properties Measured at 23°C |
||
|---|---|---|
| Specific Gravity | 1.4 | |
| Compressive Strength | 540 kg/cm² | |
| Tensile Strength | 390 kg/cm² | |
| Flexural Strength | 727 kg/cm² | |
| Impact Resistance | 3.6 cm kg/cm² | |
| Working Temperature | 65°C and below | |
| Specific Heat | 0.22 Cal/°C/gm | |
| Thermal Conductivity | 4.0 cal/(sec·cm²·°C) ×10⁴ | |
| Thermal Expansion | 0.063 mm/m°C | |
| Water Absorption | 0.10% in 24 hrs. | |
| Hardness | 70 Duro D | |
| Dielectric Constant | 1.7 (60 cps at 30°C) | |
| Power Factor | 2.52 (60 cps at 30°C) | |
| Dielectric Strength | 30 KV/mm | |
| Burning Rate | Self Extinguishing | |
| Modulus Elasticity in tension | 19,800 kg/cm² | |
-
+
