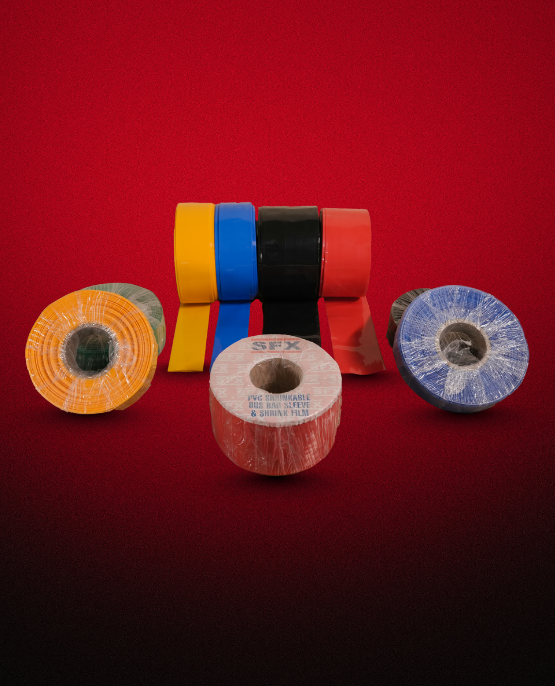

PVC Heat Shrinkable Bus Bar Sleeve
Reliable Insulation for Electrical Safety
PVC Heat Shrinkable Bus Bar Sleeves are designed to provide superior insulation, protection, and safety for Bus Bars in electrical systems. These Sleeves offer excellent resistance to heat, chemicals, and electrical stress, making them ideal for use in power distribution and industrial applications. Their shrink-fit design ensures a secure and durable covering, enhancing both performance and safety.
Heat shrinkable sleeving method of providing insulation is the latest modern technology and is superior to conventional methods like taping, painting etc.
Bus Bar Application
It offers excellent electrical insulation for Bus Bars in low-voltage systems, including control panels and switchgear assemblies.
- Thickness : 160 To 180 Micron
- Colour : Red, Yellow, Blue, Black
- Unit : 50 Meters Roll
Properties
Working Temperature : 90°C
Dielectric Strength : 20 Kv/mm
Insulation Resistance : 20 x 10¹⁰ ohms
at 500 V DC
Tensile Strength : Min 400 kg/cm
Ultimate Elongation : Min 11%
Chemical Resistance : Good
Fire Resistance : Self Extinguishing
Shrinking Temperature : 150°C–170°C for
4–5 minutes
Mechanical Strength : Excellent
Heat Dissipation : Excellent
PVC Heat Shrinkable Lay - Flat Tubing for Bus Bars
| Sr. No. | Size | Suitable for Bus Bars (Size in mm) |
|---|---|---|
| 1 | 17 mm | 8x4, 6x6, 10x3 |
| 2 | 20 mm | 12x3, 9x6 |
| 3 | 25 mm | 15x3, 12x6 |
| 4 | 30 mm | 20x3, 16x6, 16x3 |
| 5 | 35 mm | 25x3, 20x6 |
| 6 | 41 mm | 26x6, 25x9 |
| 7 | 48 mm | 30x10, 30x6, 25x12 |
| 8 | 55 mm | 36x6, 30x12 |
| 9 | 61 mm | 40x10, 40x6, 38x12, 36x9 |
| 10 | 73 mm | 50x6 |
| 11 | 81 mm | 50x12, 50x10 |
| 12 | 85 mm | 60x6 |
| 13 | 93 mm | 75x6 |
| 14 | 103 mm | 75x12 |
| 15 | 110 mm | 90x2, 90x6 |
| 16 | 128 mm | 100x9, 100x6 |
| 17 | 140 mm | 100x12 |
| 18 | 170 mm | 125x10, 125x6 |
| 19 | 190 mm | 150x12, 150x10, 150x6 |
| 20 | 210 mm | 175x12, 175x10, 175x6 |
| 21 | 230 mm | 200x12 |
-
+
